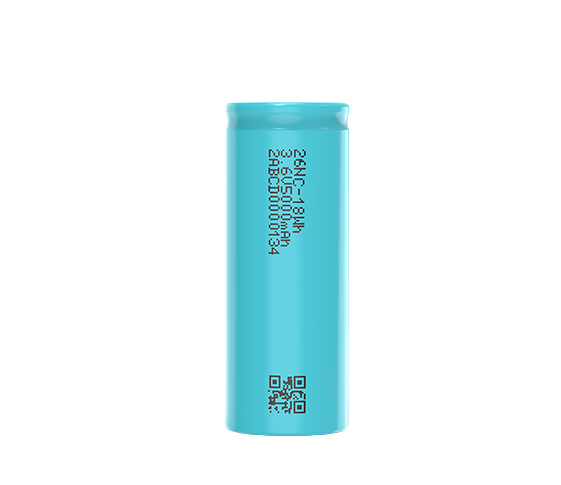

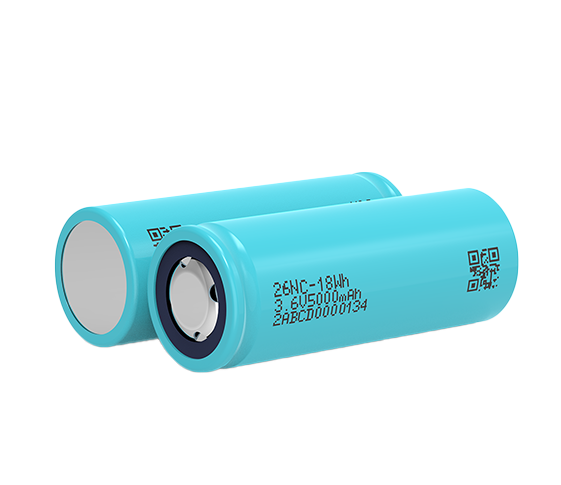

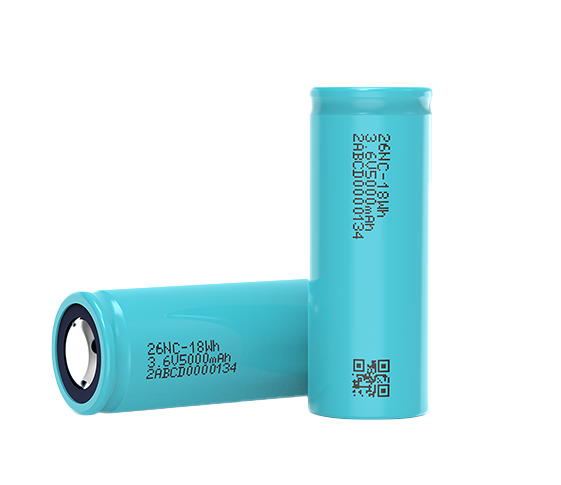

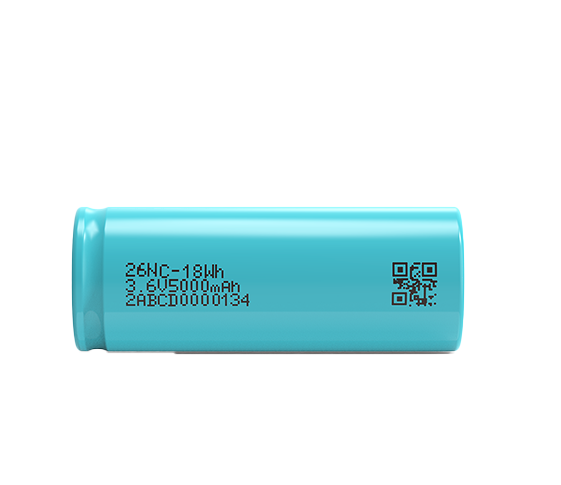

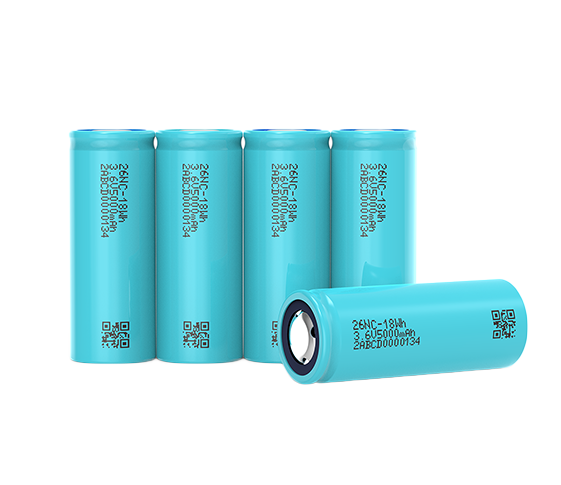

The NCM 26650 high-capacity lithium cell is engineered for industrial clients demanding superior energy reserves, extended runtime, and structural stability. Utilizing its larger volumetric advantage, this capacity-optimized cell allows manufacturers to achieve targeted pack capacities with far fewer parallel connections. Leveraging advanced Nickel-Cobalt-Manganese chemistry and robust cylindrical scaling, it delivers low self-discharge, exceptional cycle longevity, and proven field reliability. This cell is widely integrated into light electric vehicles (LEVs), automated guided vehicles (AGVs), solar storage modules, and heavy-duty backup systems where maximum endurance is critical.
Battery Model | Nominal Voltage /V | Nominal Capacity /mAh | Capacity Range /mAh | STD | MAX | STD | Fast | MAX(Cell) | Pulse Current | IR /mΩ | Dimension /mm | Weight /g | Specific Energy Wh/Kg |
JGCNR26650-5000mAh-3.6V | 3.6 | 5000 | ≥ 4900 | 0.5C | 1C | 0.5C | 1C | 2C | 15A,5S | ≤ 25 | φ26.45*65.7 | 94 | 197 |
