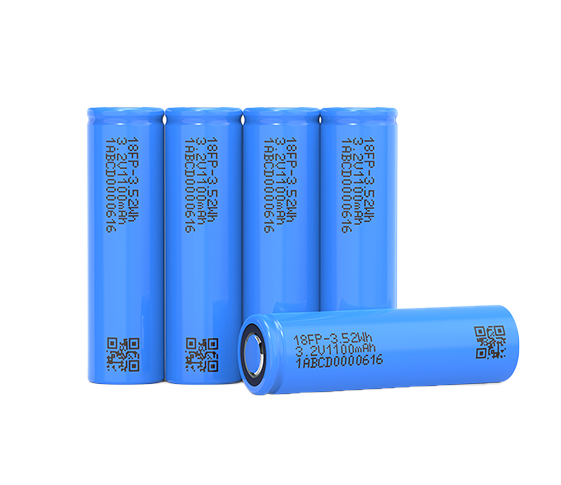

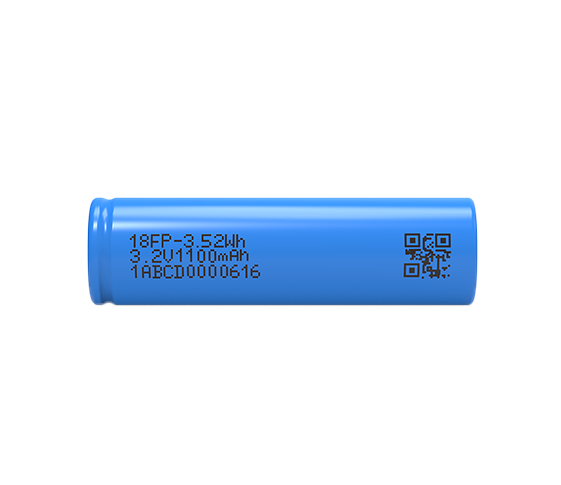

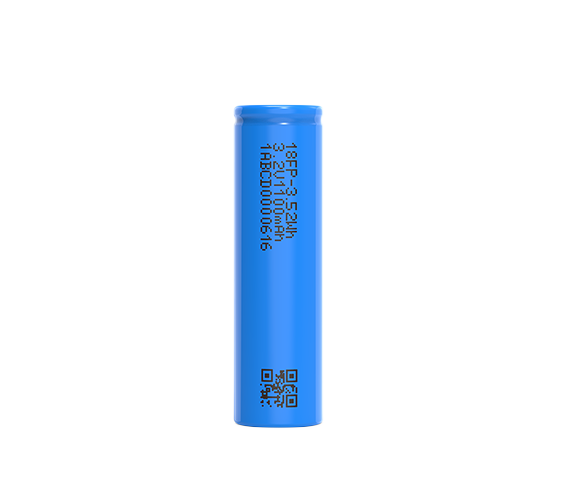

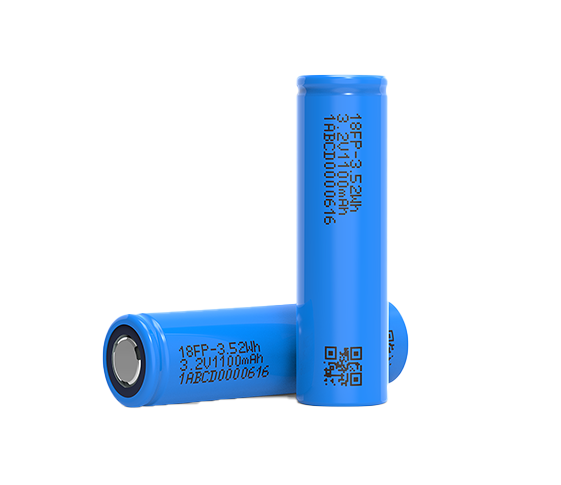

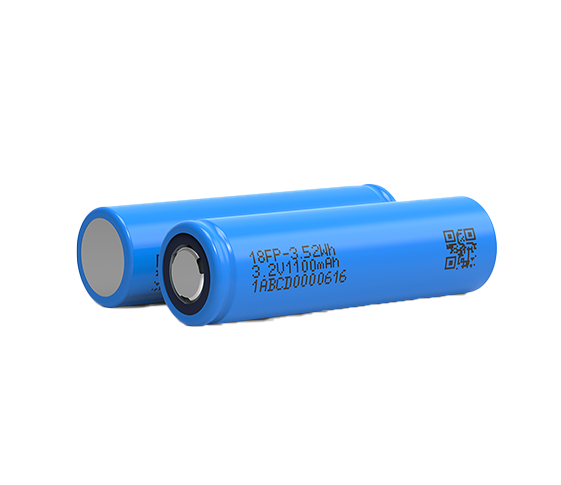

Our LiFePO₄ High-Rate Type 18650 lithium battery cells are designed for high-power and high-reliability applications requiring stable output and long service life. Based on advanced LiFePO₄ cathode materials and optimized electrode structures, these cells deliver high discharge rates, low internal resistance, and consistent voltage performance under continuous and pulse load conditions.
With compact 18650 dimensions, lightweight design, and high energy density, the cells enable efficient system integration while maintaining environmental friendliness and thermal safety. Excellent heat dissipation capability and controlled electrochemical stability support high-efficiency operation and extended cycle life. Supported by strict quality management, automated production, and comprehensive testing procedures, our high-rate 18650 cells ensure stable performance, high consistency, and dependable reliability for industrial, robotic, and energy storage applications.
| Battery Model | Nominal Voltage /V | Nominal Capacity /mAh | Capacity Range /mAh | Charge Current STD | Charge Current MAX | Discharge Current STD | Discharge Current Fast | Discharge Current MAX(Cell) | Pulse Current | IR /mΩ | Dimension /mm | Weight /g | Specific Energy /Wh/kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JGPR18650-1100mAh-3.2V | 3.2 | 1100 | ≥ 1050 | 0.5C | 5C | 5C | 10C | 30C | 40A, 10S | ≤ 18 | Φ18.60*65.2 | 39.5 | 89 |
Do not immerse the cell in water or seawater, and keep the cell in a cool dry surrounding if it stands by.
Do not use or leave the cell at high temperature as fire or heater. Otherwise, it can overheat or fire or its performance
will be degenerate and its service life will be decreased.
Batteries must not be exposed to direct sunlight.
Do not reverse the position and negative terminals.
Do not connect the cell electrodes to an electrical outlet
Do not short circuit. Otherwise it will cause serious damage of the cell.
Do not transport or store the cell together with metal objects such as hairpins, necklaces, etc.
Do not strike, trample, throw, fall and shock the cell. Protect cells from mechanical shock, impact and pressure. Internal
electrical circuit may short circuit to generate high temperature and fire hazards.
It is strictly prohibited to directly weld the steel shell of the battery, and to pierce the battery with nails or other sharp
tools.
Do not use the cell in a location where static electricity and magnetic field is great, otherwise, the safety devices may be
damaged, causing hidden trouble of safety.
When cell voltage is lower than2.0V, cell is prohibited from charging.
Use the cell charger specifically that meets the charging and discharging requirements of this document when recharging.
When the electrolyte leaks, skin and eye contact with the electrolyte should be avoided. In case of contact, a large amount
of clean water should be used to clean the contact area and seek help from the doctor.
It is forbidden for any person or animal to swallow any part of the cell or the substance contained in the cell.
If the cell gives off strange odor, generates heat, becomes discolored or deformed, or in any way appears abnormal during
use, recharging or storage, immediately stop charging, using, and remove it from the device.
In case the cell terminals are dirty, clean the terminals with a dry cloth before use. Otherwise poor performance may
occur due to the poor connection with the instrument.
Do not dissect the battery. Otherwise, the battery is no longer protected, and the cell may have potential safety hazards,
such as liquid leakage, heat generation, smoke, fire, explosion, etc.
Tape the discarded cell terminals to insulate them.
End-of-life lithium batteries should be recycled and disposed of in accordance with local laws. Be sure to send your used
electronics, batteries, and packaging materials to a dedicated collection point.
