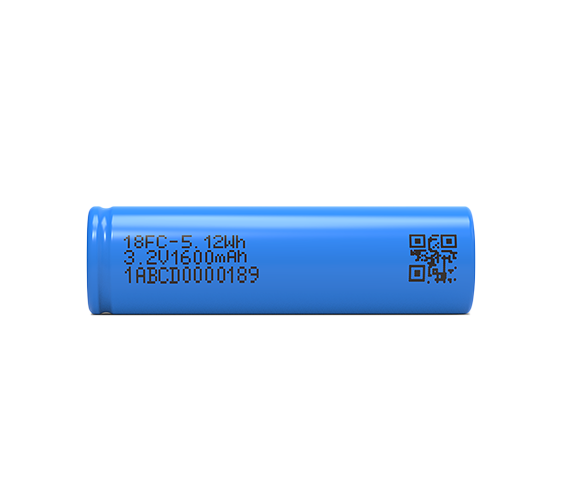

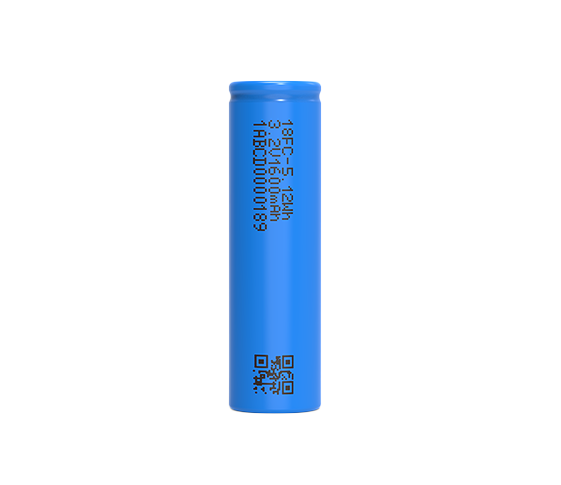

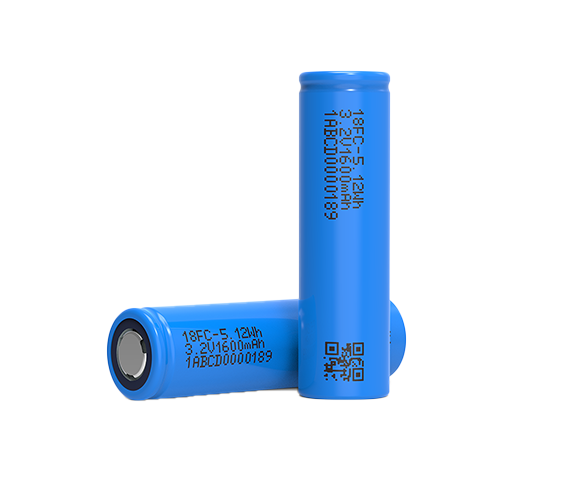

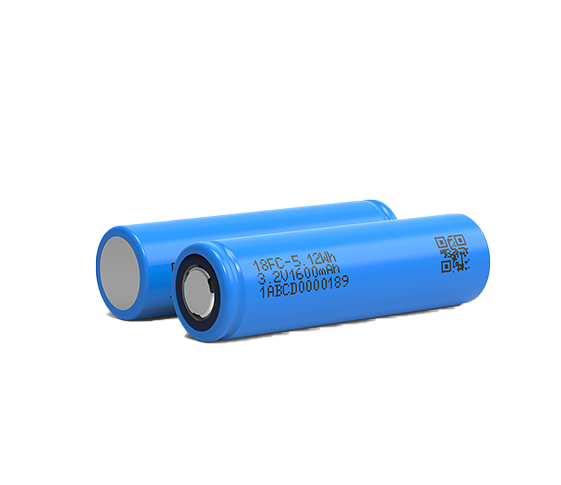

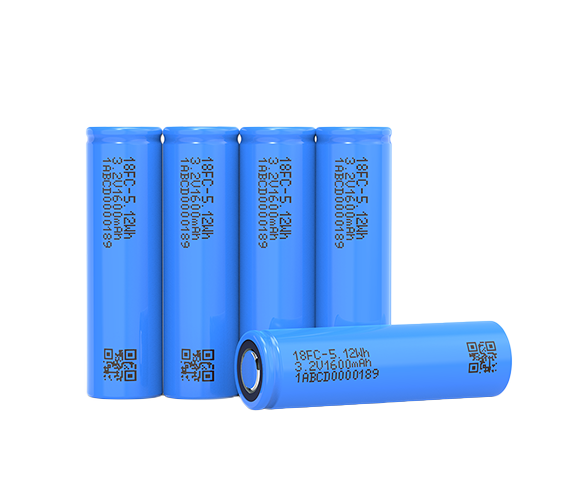

The LFP 18650 capacity cell is purpose-built for applications prioritizing maximum safety, thermal stability, and exceptional cycle life. Utilizing advanced Lithium Iron Phosphate chemistry, this cell delivers steady, long-lasting power rather than short bursts, making it ideal for deep-cycle environments. It offers superior resistance to extreme temperatures and prevents thermal runaway, ensuring unmatched operational security. With an extended lifespan that significantly lowers total cost of ownership, this durable battery is the preferred choice for solar street lighting, telecom backup systems, medical equipment, and reliable off-grid energy storage solutions.
| Battery Model | Nominal Voltage /V | Nominal Capacity /mAh | Capacity Range /mAh | Charge Current STD | Charge Current MAX | Discharge Current STD | Discharge Current Fast | Discharge Current MAX(Cell) | Pulse Current | IR /mΩ | Dimension /mm | Weight /g | Specific Energy /Wh/kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JGCFR18650-1600mAh-3.2V | 3.2 | 1600 | ≥ 1550 | 0.5C | 1C | 0.5C | 1C | 3C | 10A, 5S | ≤ 25 | Φ18.60*65.2 | 39.5 | 130 |
| JGCFR18650-1800mAh-3.2V | 3.2 | 1800 | ≥ 1750 | 0.5C | 1C | 0.2C | 1C | 3C | 10A, 5S | ≤ 25 | Φ18.60*65.2 | 41.5 | 139 |
| JGCFR18650-2000mAh-3.2V | 3.2 | 2000 | ≥ 1900 | 0.2C | 0.5C | 0.2C | 1C | 3C | 10A, 5S | ≤ 25 | Φ18.60*65.2 | 43 | 149 |
| JGCFR18650-2200mAh-3.2V | 3.2 | 2200 | ≥ 2100 | 0.2C | 0.5C | 0.2C | 1C | 3C | 10A, 5S | ≤ 25 | Φ18.60*65.2 | 43 | 164 |
