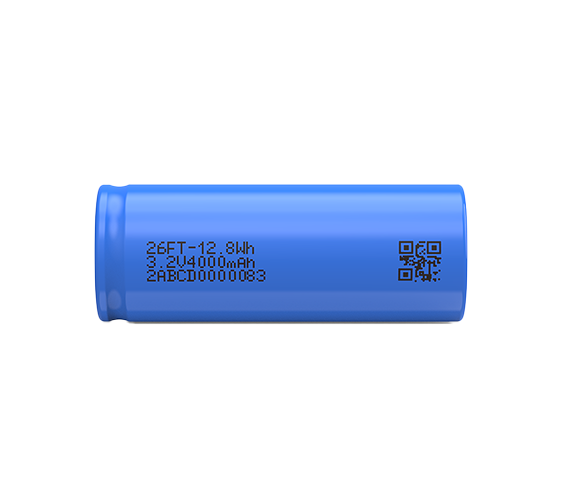

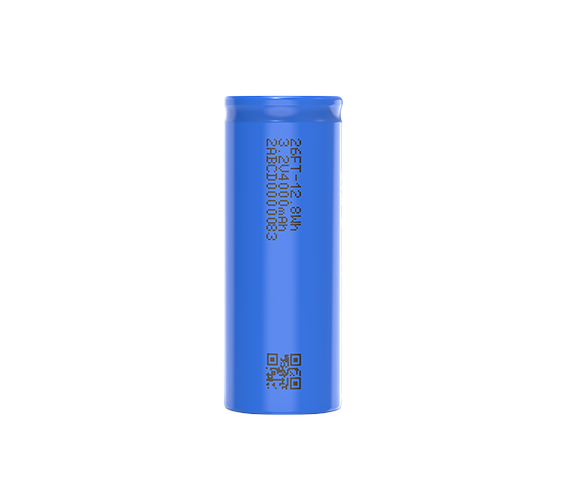

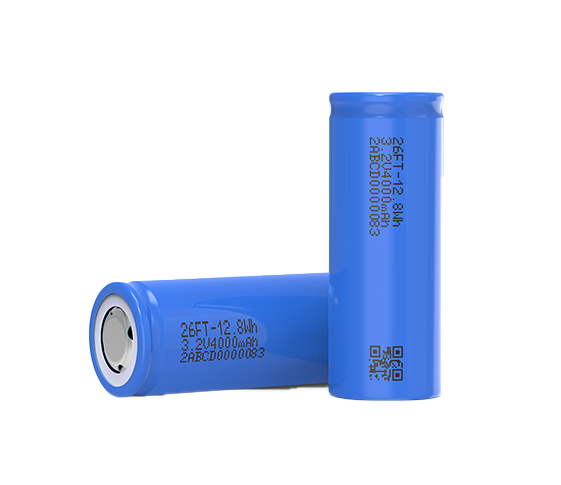

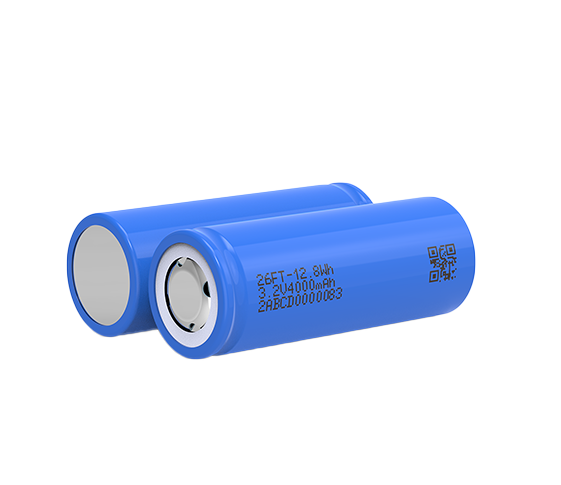

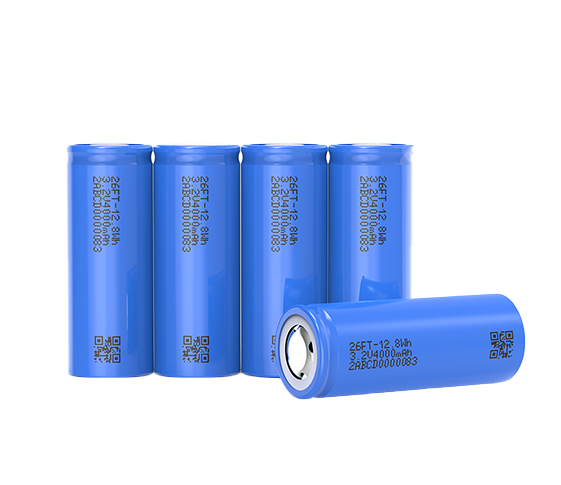

Our 4000mAh high-temperature lithium cell is engineered for reliable performance in demanding heat-exposed environments. Featuring advanced electrolyte formulation and enhanced thermal-resistant materials, it maintains stable capacity and voltage output even under extreme operating conditions. The cell delivers long cycle life, excellent safety protection, and consistent energy supply for applications such as solar lighting, industrial equipment, and outdoor power systems. It is an ideal choice for projects requiring durability, high efficiency, and dependable performance in elevated temperatures.
| Battery Model | Nominal Voltage /V | Nominal Capacity /mAh | Capacity Range /mAh | Charge Current STD | Charge Current MAX | Discharge Current STD | Discharge Current Fast | Discharge Current MAX(Cell) | Pulse Current | IR /mΩ | Dimension /mm | Weight /g | Specific Energy /Wh/kg | Working Temp Charge | Working Temp Discharge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JGTR26650-4000mAh-3.2V | 3.2 | 4000 | ≥ 3950 | 0.5C | 1C | 0.2C | 1C | 3C | 20A, 5S | ≤ 20 | Φ26.45*65.7 | 88 | 145 | 0~75℃ | -30~75℃ |
Notice in Using Cell
Do not immerse the cell in water or seawater, and keep the cell in a cool dry surrounding if it stands by.
Do not use or leave the cell at high temperature as fire or heater. Otherwise, it can overheat or fire or its performance will be degenerate and its service life will be decreased
Batteries must not be exposed to direct sunlight
Do not reverse the position and negative terminals
Do not connect the cell electrodes to an electrical outlet
Do not short circuit. Otherwise it will cause serious damage of the cell
Do not strike, trample, throw, fall and shock the cell. Protect cells from mechanical shock, impact and pressure. Internal electrical circuit may short circuit to generate high temperature and fire hazards
It is strictly prohibited to directly weld the steel shell of the battery, and to pierce the battery with nails or other sharp tools.
Do not use the cell in a location where static electricity and magnetic field is great, otherwise, the safety devices may be damaged, causing hidden trouble of safety.
When cell voltage is lower than2.0V, cell is prohibited from charging
When the electrolyte leaks, skin and eye contact with the electrolyte should be avoided. In case of contact, a large amount of clean water should be used to clean the contact area and seek help from the doctor.
If the cell gives off strange odor, generates heat, becomes discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately stop charging, using, and remove it from the device.
Do not dissect the battery. Otherwise, the battery is no longer protected, and the cell may have potential safety hazards, such as liquid leakage, heat generation, smoke, fire, explosion, etc.
