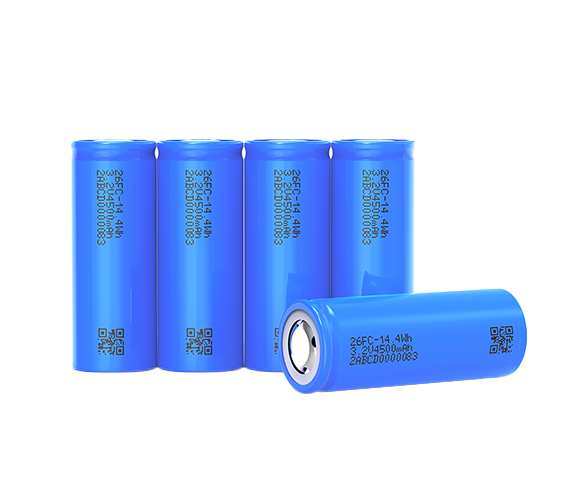

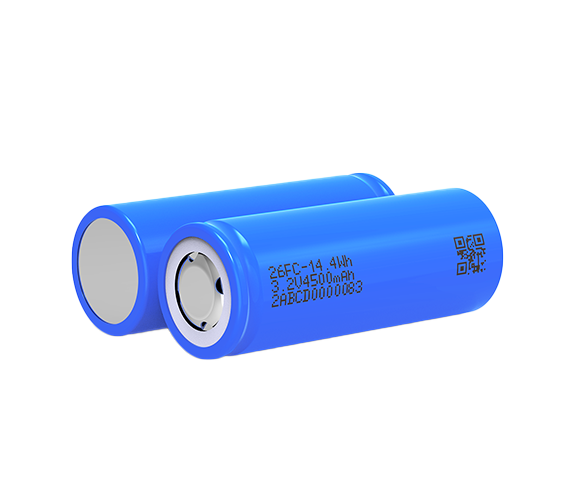

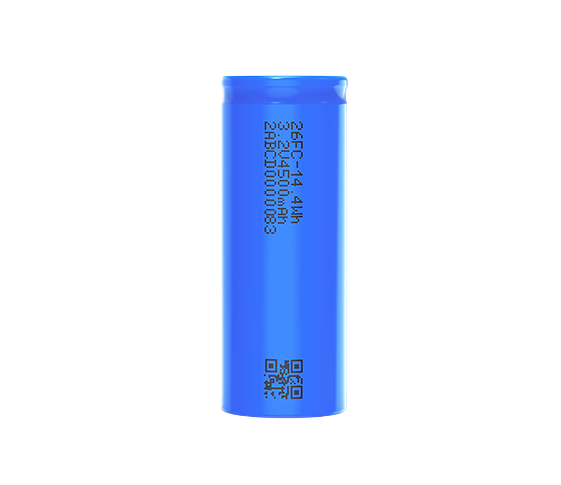

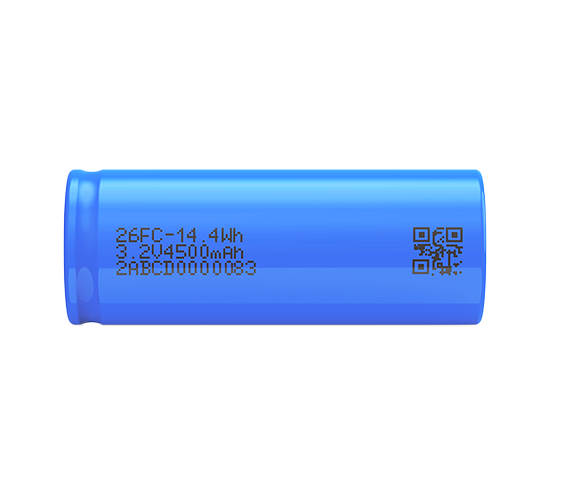

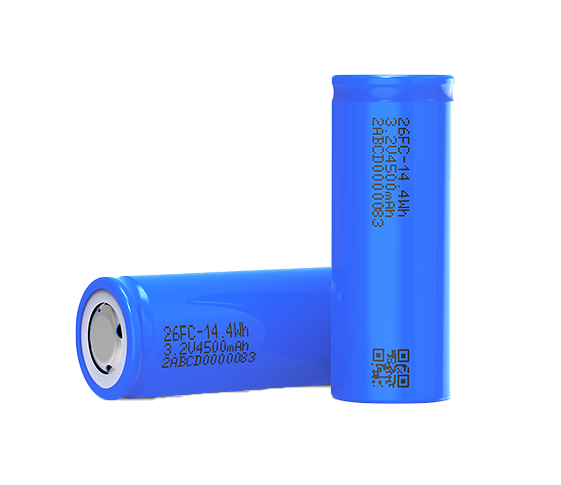

The LFP 26650 capacity lithium cell combines the inherent safety of Lithium Iron Phosphate chemistry with a larger structural volume for maximized energy retention. Engineered for robust endurance, this high-capacity cell allows battery pack assemblers to achieve targeted power ratings using fewer parallel connections, thereby streamlining overall BMS complexity. Featuring outstanding thermal stability, excellent resistance to thermal runaway, and an incredibly prolonged cycle life, this durable battery is the ideal core component for automated guided vehicles (AGVs), demanding power tools, high-intensity lighting equipment, and industrial setups where unparalleled safety is paramount.
| Battery Model | Nominal Voltage /V | Nominal Capacity /mAh | Capacity Range /mAh | Charge Current STD | Charge Current MAX | Discharge Current STD | Discharge Current Fast | Discharge Current MAX(Cell) | Pulse Current | IR /mΩ | Dimension /mm | Weight /g | Specific Energy /Wh/kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JGCFR26650-3400mAh-3.2V | 3.2 | 3400 | ≥ 3300 | 0.5C | 1C | 0.5C | 1C | 3C | 15A, 5S | ≤ 25 | Φ26.45*65.4 | 83 | 131 |
| JGCFR26650-3600mAh-3.2V | 3.2 | 3600 | ≥ 3550 | 0.5C | 1C | 0.2C | 1C | 3C | 20A, 5S | ≤ 25 | Φ26.45*65.7 | 84 | 136 |
| JGCFR26650-3800mAh-3.2V | 3.2 | 3800 | ≥ 3750 | 0.5C | 1C | 0.2C | 1C | 3C | 20A, 5S | ≤ 25 | Φ26.45*65.7 | 87.5 | 139 |
| JGCFR26650-4000mAh-3.2V | 3.2 | 4000 | ≥ 3950 | 0.5C | 1C | 0.2C | 1C | 3C | 20A, 5S | ≤ 25 | Φ26.45*65.7 | 88 | 146 |
| JGCFR26650-4500mAh-3.2V | 3.2 | 4500 | ≥ 4400 | 0.5C | 1C | 0.2C | 1C | 3C | 20A, 5S | ≤ 25 | Φ26.45*65.7 | 89 | 161 |
